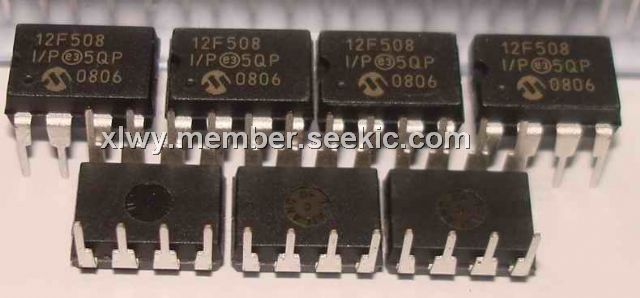

PIC12F508-I/P

Product Summary

The PIC12F508-I/P is a low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontroller. The PIC12F508-I/P employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (200 μs) except for program branches, which take two cycles. The PIC12F508-I/P delivers performance an order of magnitude higher than their competitors in the same price category. The PIC12F508-I/P 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

Parametrics

PIC12F508-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all GPIO: 75 mA; (14)Maximum current sourced all GPIO: 75 mA.

Features

PIC12F508-I/P features: (1)Precision Internal Oscillator; (2)Power-Saving Sleep mode; (3)Wide operating voltage range (2.0V-5.5V); (4)Industrial and Extended Temperature range; (5)Power-on Reset (POR); (6)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (7)Brown-out Reset (BOR) with software control option; (8)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (9)Multiplexed Master Clear with pull-up/input pin; (10)Programmable code protection; (11)High Endurance Flash/EEPROM cell; (12)Program memory Read/Write during run time; (13)In-Circuit Debugger (on board).

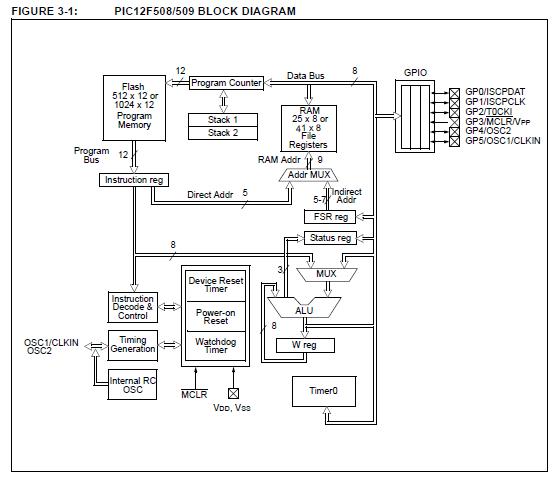

Diagrams
