PIC12C508A-04/SM

Product Summary

The PIC12C508A-04/SM is a low-cost, high performance, 8-bit, fully static, EEPROM/EPROM/ROM-based CMOS microcontroller. The PIC12C508A-04/SM employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1 µs) except for program branches which take two cycles. The PIC12C508A-04/SM delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

Parametrics

PIC12C508A-04/SM absolute maximum ratings: (1)Ambient Temperature under bias:–40 to +125℃; (2)Storage Temperature: –65 to +150℃; (3)Voltage on VDD with respect to VSS: 0 to +7.5 V; (4)Voltage on MCLR with respect to VSS: 0 to +14 V; (5)Voltage on all other pins with respect to VSS: –0.6 V to (VDD + 0.6 V); (6)Total Power Dissipation: 700 mW; (7)Max. Current out of VSS pin: 200 mA; (8)Max. Current into VDD pin: 150 mA; (9)Input Clamp Current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output Clamp Current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Max. Output Current sunk by any I/O pin: 25 mA; (12)Max. Output Current sourced by any I/O pin: 25 mA; (13)Max. Output Current sourced by I/O port (GPIO): 100 mA; (14)Max. Output Current sunk by I/O port (GPIO ): 100 mA.

Features

PIC12C508A-04/SM features: (1)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler; (2)Power-On Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (5)Programmable code-protection; (6)1,000,000 erase/write cycle EEPROM data memory; (7)EEPROM data retention > 40 years; (8)Power saving SLEEP mode; (9)Wake-up from SLEEP on pin change; (10)Internal weak pull-ups on I/O pins; (11)Internal pull-up on MCLR pin; (12)Selectable oscillator options: INTRC: Internal 4 MHz RC oscillator; EXTRC: External low-cost RC oscillator; XT: Standard crystal/resonator; LP: Power saving, low frequency crystal.

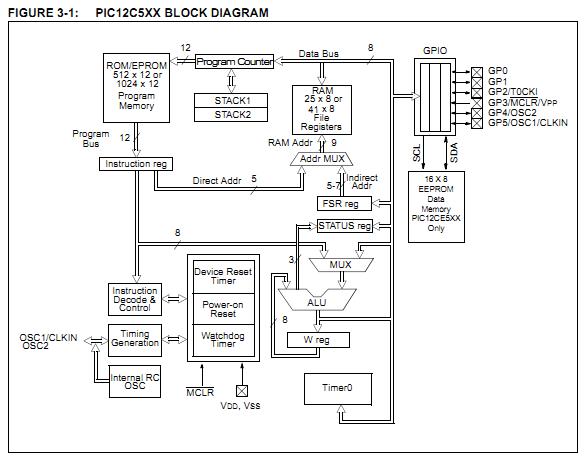

Diagrams
