Product Summary

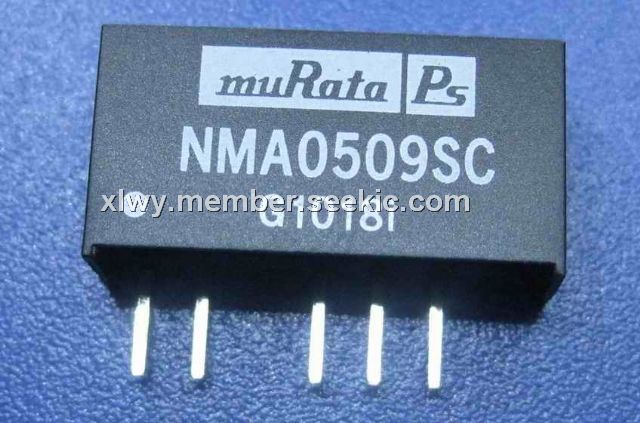

The NMA0509SC DC-DC converter is the standard building block for on-board distributed power systems. The NMA0509SC DC-DC is ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1watt.
Parametrics
NMA0509SC absolute maxing ratings: (1)Short-circuit duration: 1 second; (2)Internal power dissipation: 450mW; (3)Lead temperature 1.5mm from case for 10 seconds: 300℃; (4)Input voltage VIN, NMA05 types: 7V.
Features
NMA0509SC features: (1)Wide Temperature performance at full 1 Watt load, –40 to 85℃; (2)Dual Output from a Single Input Rail; (3)Industry Standard Pinout; (4)Power Sharing on Output; (5)1kVDC Isolation; (6)Efficiency to 78%; (7)Power Density up to 0.85W/cm3; (8)5V & 12V Input; (9)5V, 9V, 12V and 15V Output; (10)Footprint from 1.17cm2; (11)UL 94V-0 Package Material; (12)No Heatsink Required; (13)Internal SMD Construction; (14)Toroidal Magnetics; (15)Fully Encapsulated; (16)No External Components Required; (17)MTTF up to 2.1 Million hours; (18)Custom Solutions Available; (19)No Electrolytic or Tantalum Capacitors.

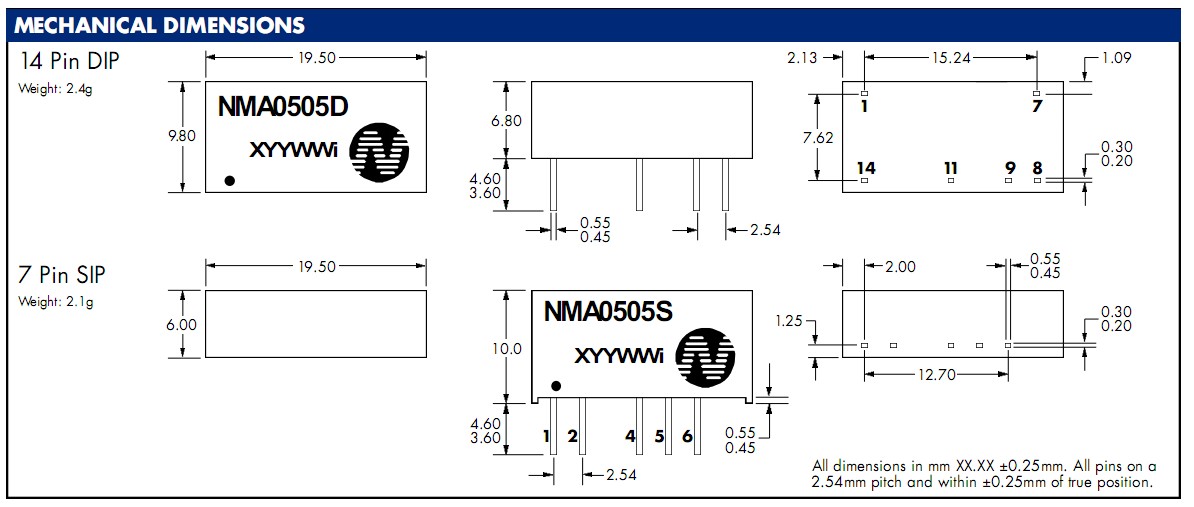

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NMA0509SC |
Murata Power Solutions |
DC/DC Converters 5V to +/-9V +/-55mA SIP |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NMA0305S |
Murata Power Solutions |
DC/DC Converters 1W DUAL 3V/05V DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
NMA0315D |
Murata Power Solutions |
DC/DC Converters 1W DUAL 3V/15V DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
NMA0315S |
Murata Power Solutions |
DC/DC Converters 1W Dual 3V - 15V |
Data Sheet |
Negotiable |
|
||||||||||||
|
NMA0505D |
Murata Power Solutions |
DC/DC Converters 1W DUAL 5V/5V DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
NMA0505DC |
Murata Power Solutions |
DC/DC Converters 1W Dual 5V/5V 100mA Dual Output |
Data Sheet |
|
|
||||||||||||
|
NMA0505DV |
Murata Power Solutions |
DC/DC Converters DISC MFG 08/01 1W DUAL 5V/5V DIP |
Data Sheet |
Negotiable |
|
||||||||||||
