Product Summary

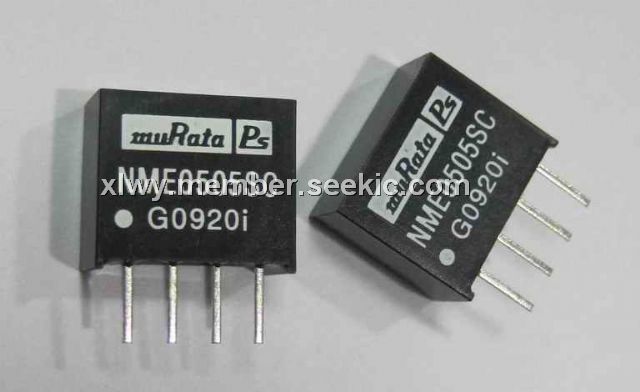

The NME0505SC is the isolated 1W single output DC-DC converter.

Parametrics

NME0505SC absolute maximum ratings: (1)Resistance, Viso=500VDC: 10 GW; (2)Switching Frequency,5V input types: 110 kHz; (3)Switching Frequency,12V input types: 145 kHz; (4)Specification All output types: -40 to 85 ℃; (5)Storage: -50 to 130 ℃.

Features

NME0505SC features: (1)Wide Temperature Performance at full 1 Watt load, –40 to 85℃; (2)Single Isolated Output; (3)Industry Standard Pinout; (4)1kVDC Isolation; (5)Efficiency to 80%; (6)Power Density 1.53W/cm3; (7)5V & 12V Input; (8)5V, 9V, 12V and 15V Output; (9)Footprint from 0.69cm2; (10)UL 94V-0 Package Material; (11)No Heatsink Required; (12)Internal SMD Construction; (13)Toroidal Magnetics; (14)Fully Encapsulated; (15)No External Components Required; (16)MTTF up to 2.9 Million Hours; (17)Custom Solutions Available; (18)Pin Compatible with LME & NML Series; (19)SIP & DIP Package Styles; (20)PCB Mounting.

Diagrams

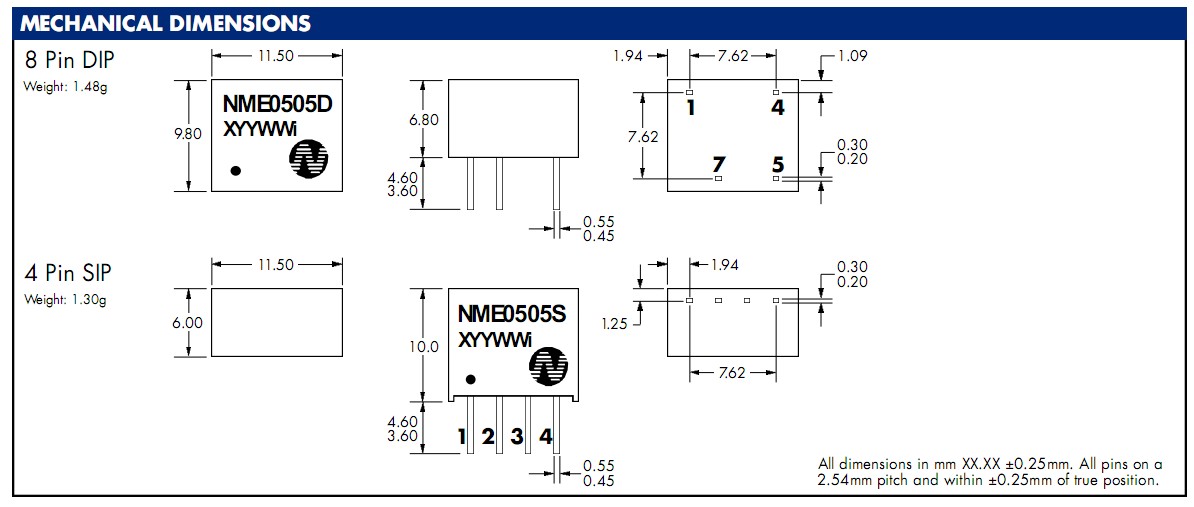

NME0505SC mechanical dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NME0505SC
NME0505SC

Murata Power Solutions

DC/DC Converters 5V to 5V 200mA Single Output

Data Sheet

0-1: $4.87
1-5: $4.85
5-10: $4.81
10-25: $4.76
