Product Summary

The PA240CC is a high voltage monolithic MOSFET operational amplifier achieving performance features previously found only in hybrid designs while increasing reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitations. The PA240CC is packaged in two standard package designs. The applications of the PA240CC include: (1)telephone ring generator; (2)piezo electric positioning; (3)electrostatic transducer & deflection; (4)deformable mirror focusing; (5)packaging options: 7 DDPAK Surface Mount Package.

Parametrics

PA240CC absolute maximum ratings: (1)supply voltage, +vs to –vs: 350v; (2)output current, continuous within soa: 60 ma; (3)output current, peak: 120 ma; (4)power dissipation, continuous @ tc = 25℃: 14w; (5)input voltage, differential: ±16 v; (6)input voltage, common mode: ±vs; (7)temperature, pin solder – 10 sec: 220℃; (8)temperature, junction: 150℃; (9)temperature, storage: –65 to +150℃; (10)temperature range, powered (case): –40 to +125℃.

Features

PA240CC features: (1)monolithic mos technology; (2)low cost; (3)high voltage operation-350v; (4)low quiescent current typ.-2.2ma; (5)no second breakdown; (6)high output current-120 ma peak.

Diagrams

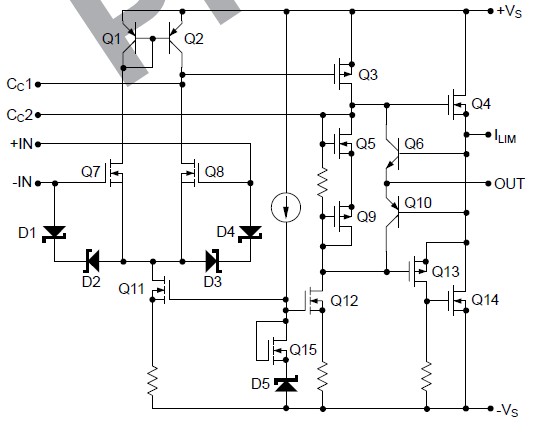

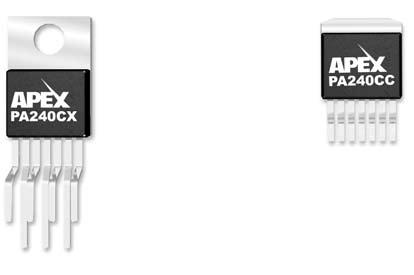

PA240CC diagram

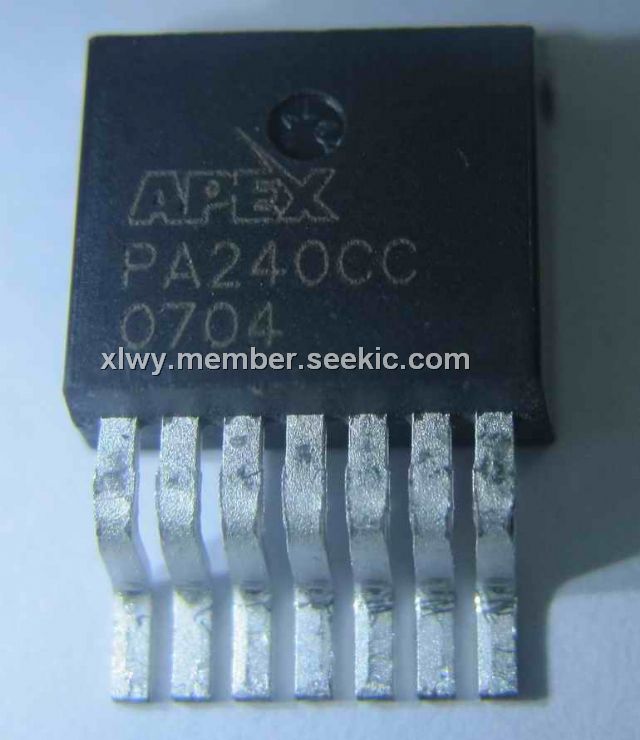

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PA240CC
PA240CC
Cirrus Logic
Operational Amplifiers - Op Amps IC 350V 120mA PEAK AMP
Data Sheet
Negotiable
