Product Summary

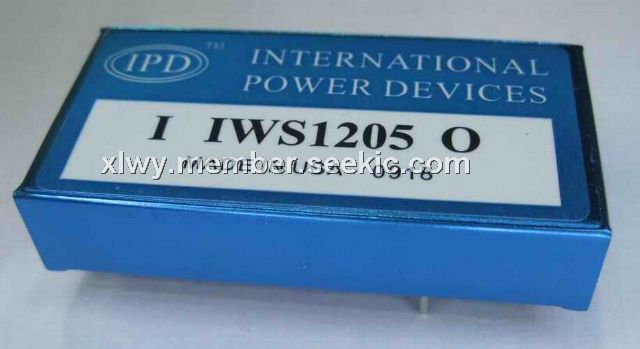

The IWS1205 is the dual output DC/DC converter which offers excellent regulation and isolation in an industry-standard package. Available in 5V and 12V input versions, the IWS1205 is perfect for industrial, datacom, or telecom applications. The IWS1205 features short-circuit protection and 500 VDC isolation. Please see the IWS and IAS series for single output applications.
Parametrics
IWS1205 absolute maximum ratings: (1)Switching Frequency: 300 kHz; (2)Isolation Input - Output: 500 VDC; (3)Isolation Resistance - Input to Output: 10 9 Ohms; (4)Standard Case Operating Range: -25 to +85℃; (5)Storage Range: -40 to +125℃; (6)Humidity Max., Non-Condensing: 95%.
Features
IWS1205 features: (1)Industry Standard Package; (2)Industry Standard Pinout; (3)85℃ Case Operation; (4)Short Circuit Protection; (5)5V and 12V Inputs; (6)Input Pi Filter; (7)6-Sided Shielding; (8)Wide Input Voltage; (9)500V Isolation.

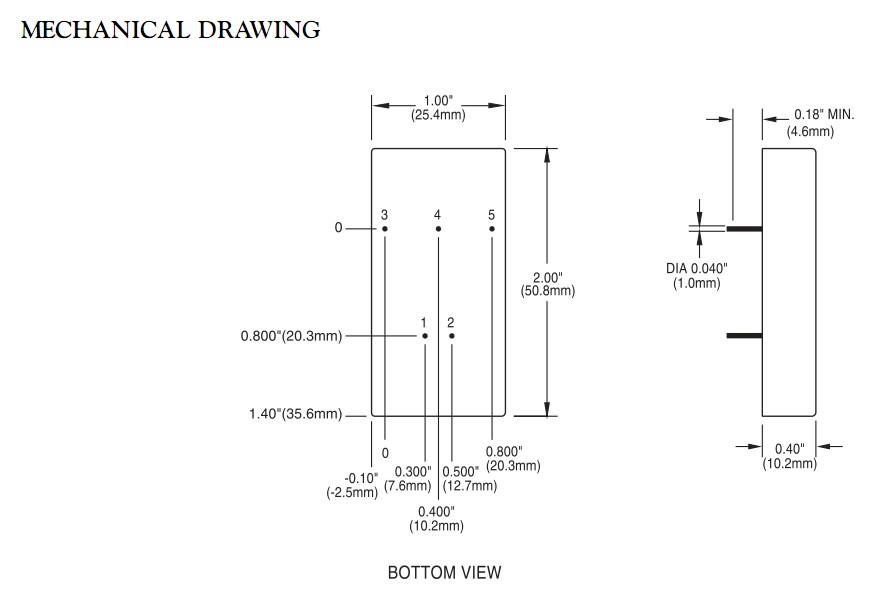

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IWS1205 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
IWS1205 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
IWS1212 |
|
SWITCHING REGULATOR 144W 12V |
Data Sheet |
|
|
||||||
|
IWS1224 |
|
SWITCHING REGULATOR 168W 12V |
Data Sheet |
|
|
||||||
|
IWS1248 |
|
SWITCHING REGULATOR 108W 12V |
Data Sheet |
|
|
||||||
