Product Summary
The AXK660347YG is a narrow pitch connector. The applications of the AXK660347YG include Compact portable devices "Cellular phones, DVC, Digital cameras, etc". This connector is particularly suited to the motherboard, CPU board, and other multi-pin expansion boards on notebook PCs and other info-communications applications.
Parametrics
AXK660347YG absolute maximum ratings: (1)Rated voltage: 60V; (2)Breakdown voltage: 150V for 1 min; (3)Insulation resistance: 1000mΩ; (4)Soldering heat resistance: Max. peak temperature of 260℃ (on the surface of the PC board around the connector terminals); (5)Ambient temperature: -55℃ to 85℃; (6) Insertion and removal life: 50 times.
Features
AXK660347YG features: (1)The product lineup consists of 3.0mm, 3.5mm, 4.0mm, 4.5mm,; (2)5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 8.0mm, and 9.0mm; (3)Strong resistance to adverse environments; (4)Even with the low profile, the effective mating length has been; (5)extended to ensure that there is some latitude in the mating; (6)Automatic mounting.

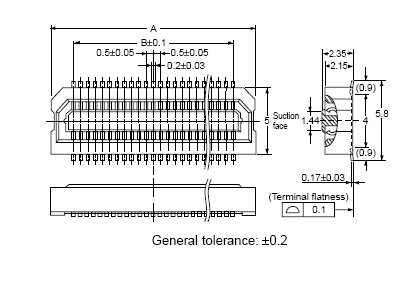

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AXK660347YG |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN HEADER P5K 60 POS 0.5mm |
Data Sheet |
|
|
||||||||||||
