Product Summary

The 24LC02B-I/P is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24LC02B-I/P also has a page write capability for up to 8 bytes of data. The 24LC02B-I/P is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages and is also available in the 5-lead SOT-23 package.

Parametrics

24LC02B-I/P absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3)Storage temperature: -65 to +150℃; (4)Ambient temperature with power applied: -65 to +125℃; (5)ESD protection on all pins: ≥ 4kV.

Features

24LC02B-I/P features: (1)Single supply with operation down to 1.8V; (2)Low-power CMOS technology: 1 mA active current typical; 1 μA standby current typical (I-temp); (3)Organized as 1 block of 256 bytes (1 x 256 x 8); (4)2-wire serial interface bus, I2C compatible; (5)Schmitt Trigger inputs for noise suppression; (6)Output slope control to eliminate ground bounce; (7)100 kHz (24AA02) and 400 kHz (24LC02B) compatibility; (8)Self-timed write cycle (including auto-erase); (9)Page write buffer for up to 8 bytes; (10)2 ms typical write cycle time for page write; (11)Hardware write-protect for entire memory; (12)Can be operated as a serial ROM; (13)Factory programming (QTP) available; (14)ESD protection > 4,000V; (15)1,000,000 erase/write cycles; (16)Data retention > 200 years; (17)8-lead PDIP, SOIC, TSSOP and MSOP packages; (18)5-lead SOT-23 package; (19)Pb-free finish available.

Diagrams

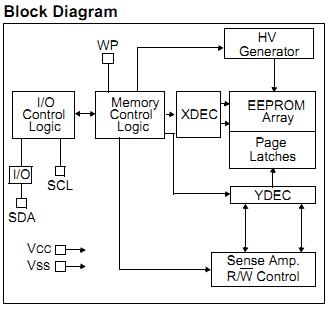

24LC02B-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
24LC02B-I/P
24LC02B-I/P
Microchip Technology
EEPROM 256x8 - 1.8V
Data Sheet
0-1: $0.20
1-10: $0.17
10-25: $0.16
25-100: $0.16
24LC02B-I/PG
24LC02B-I/PG
Microchip Technology
EEPROM 256x8 - 1.8V Lead Free Package
Data Sheet
Negotiable
