FS401LF

Product Summary

The FS401LF is a fourth generation video scan converter. It accepts many input resolutions and rates and converts them to NTSC or PAL standards compliant with SMPTE-170M and CCIR-656 standards. Also available as output options are VGA 640 x 480 at 60Hz progressive, SVGA 800 x 600 at 60Hz progressive, and 100 Hz interlaced. The FS401LF has a programmable down scaler to fit the incoming resolution to the output display format.

Parametrics

FS401LF absolute maxing ratings: (1)VDD (Measured to VSS): -0.5 min, 3.3 typ, 4.6 max V; (2)VDDAD (Measured to VSSAD): -0.5 min, 3.3 typ, 4.6 max V; (3)VDDPA and VDDPF (Measured to VSSPA and VSSPF): -0.5 min, 3.3 typ, 4.6 max V; (4)VDDDA (Measured to VSSDA): -0.5 min, 3.3 typ, 4.6 max V; (5)VSSAD, VSSPA, VSS, VSSPA, VSSDA (delta): -0.5 to 0.5 V; (6)3.3 V logic applied voltage (Measured to VSS): -0.5 to VDD + 0.5 V; (7)Forced current: -10.0 to 10.0 mA; (8)Operating, Ambient: -20 to 110 ℃; (9)Junction: 150℃; (10)Lead Soldering (10 seconds): 300 ℃; (11)Vapor Phase Soldering (1 minute): 220 ℃; (12)Storage: -65 to 150 ℃; (13)Electrostatic Discharge: ±150 V.

Features

FS401LF features: (1)Frame rate Conversion; (2)Programmable 2D scaling; (3)Pan and Zoom; (4)Advanced 2-D flicker filter; (5)Frame-store memory controller; (6)Supports Multiple Progressive Input Resolutions; (7)Standard NTSC and PAL; (8)Super NTSC & PAL; (9)VGA Progressive; (10)SVGA Progressive; (11)NTSC Progressive; (12)Automatically detects input active video area; (13)Automatically selects the best output and scaling for any input resolution; (14)Programmable sharpness, brightness, contrast and color saturation; (15)Customizable On Screen Display via glueless integration with Zilog and Philips OSD Microprocessors (FS403); (16)C, H, and V Sync tri-state outputs; (17)H and V Sync monitoring for DPMS Support; (18)Exceeds all PC97 and PC98 requirements; (19)General Purpose Output Pins; (20)8-bit A/D converters with frequency adaptive input filtering support; (21)10-bit output D/A converters; (22)Digital RGB Inputs (FS403); (23)3.3V operation; (24)RoHS Compliant.

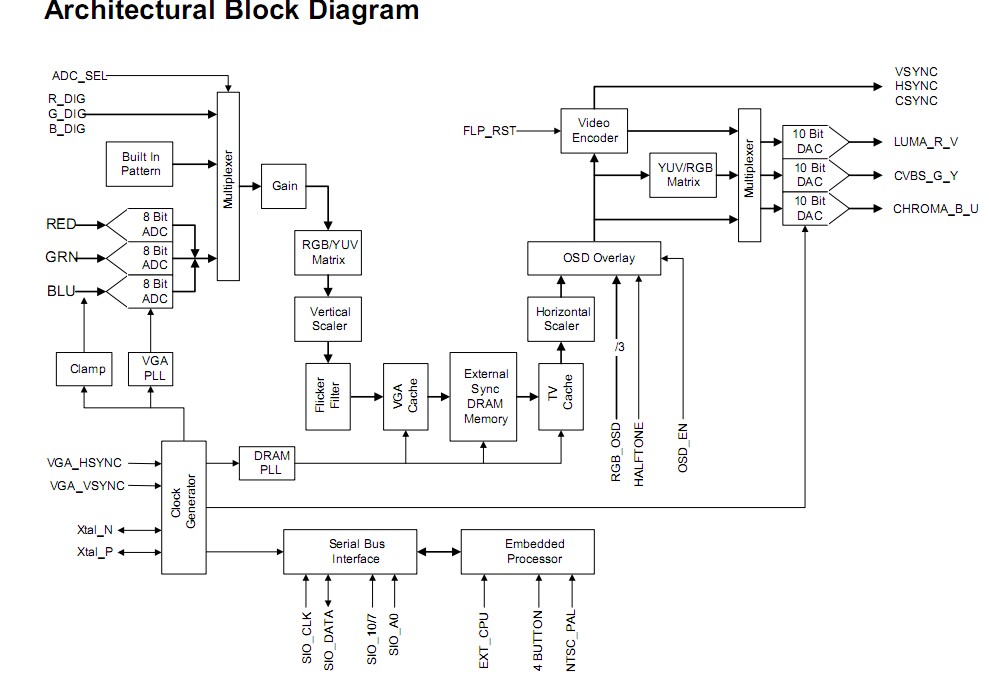

Diagrams
